Videx 4851/2/3 flush mount backbox & front support

Videx 4851/2/3 flush mount backbox & front support

The front support is available in 1, 2 and 3 module versions and includes:

- The flush back box

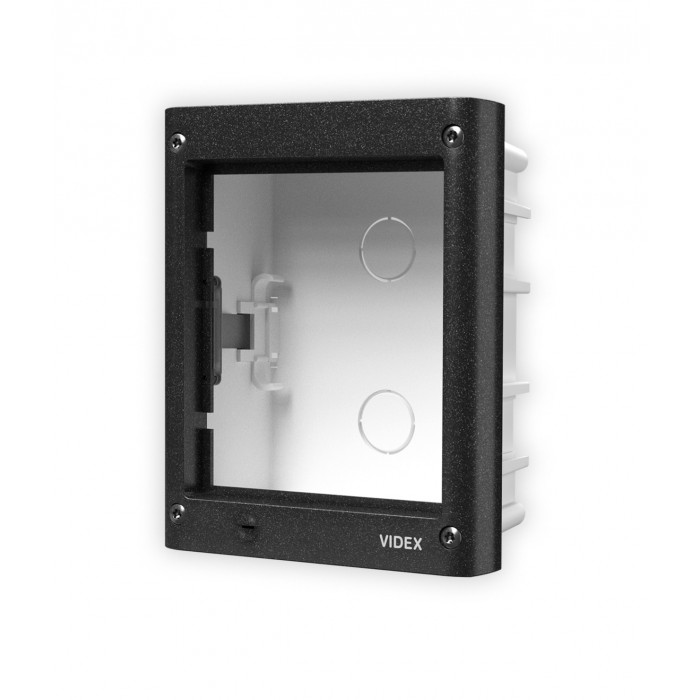

- 4851 1 Module Frame dimensions - 135mm (W) x 160mm (H) Flush box dimensions - 120MM (W) x 143mm (H) x 45mm (D)

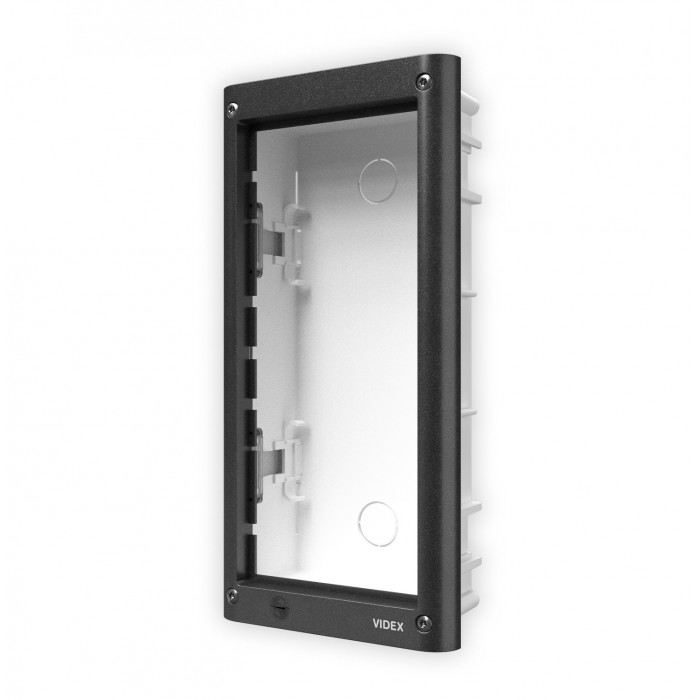

- 4852 2 Module Frame dimensions - 135mm (W) x 280.2mm (H) Flush box dimensions - 120MM (W) x 263.2mm (H) x 45mm (D)

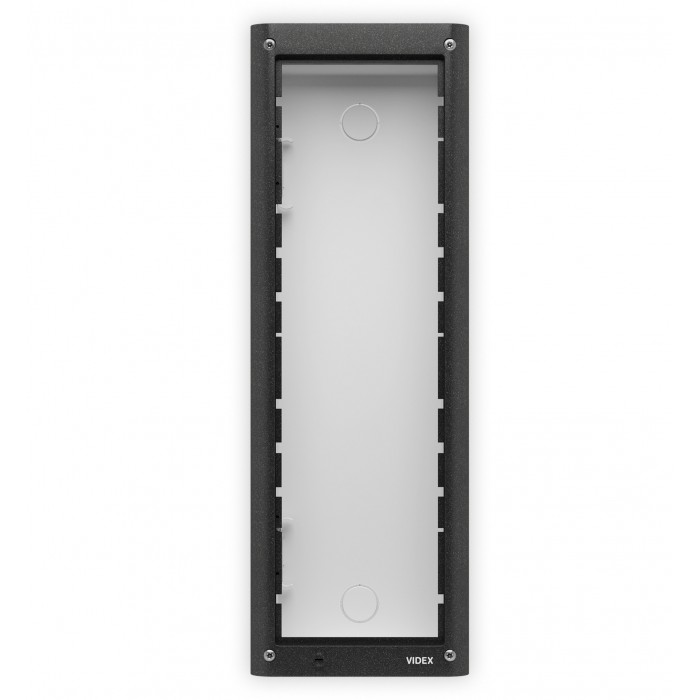

- 4853 3 Module Frame dimensions - 135mm (W) x 400.4mm (H) Flush box dimensions - 120MM (W) x 383.4mm (H) x 45mm (D)

- The module support frame is provided with a waterproof gasket and security screws for fixing to the flush back box
- Spacers to connect the back boxes together when the outdoor station requires more than 3 modules

Front supports and surface mounting units are available with the support frame in 3 different finishes:

- flush mounting box with black surround (Standard)
- flush mounting box with chrome surround
- flush mounting box with gold surround

Write a review

Please login or register to review
  • : 20494
  • Brand: Videx
  • Product Code: 4851/4852/4853
  • Dispatched: 1-2 Working Days
